ComfyUI-MisterMR-Nodes

A collection of custom nodes for ComfyUI that add drawing capabilities to your workflow.

You need ComfyUIhttps://blog.comfy.org/ installed on your computer.

Refer to my articles :

• https://civitai.com/articles/14507/add-text-and-graphics-to-images-with-my-own-c...

• https://civitai.com/articles/14533/comfyui-adding-a-logo-to-your-image

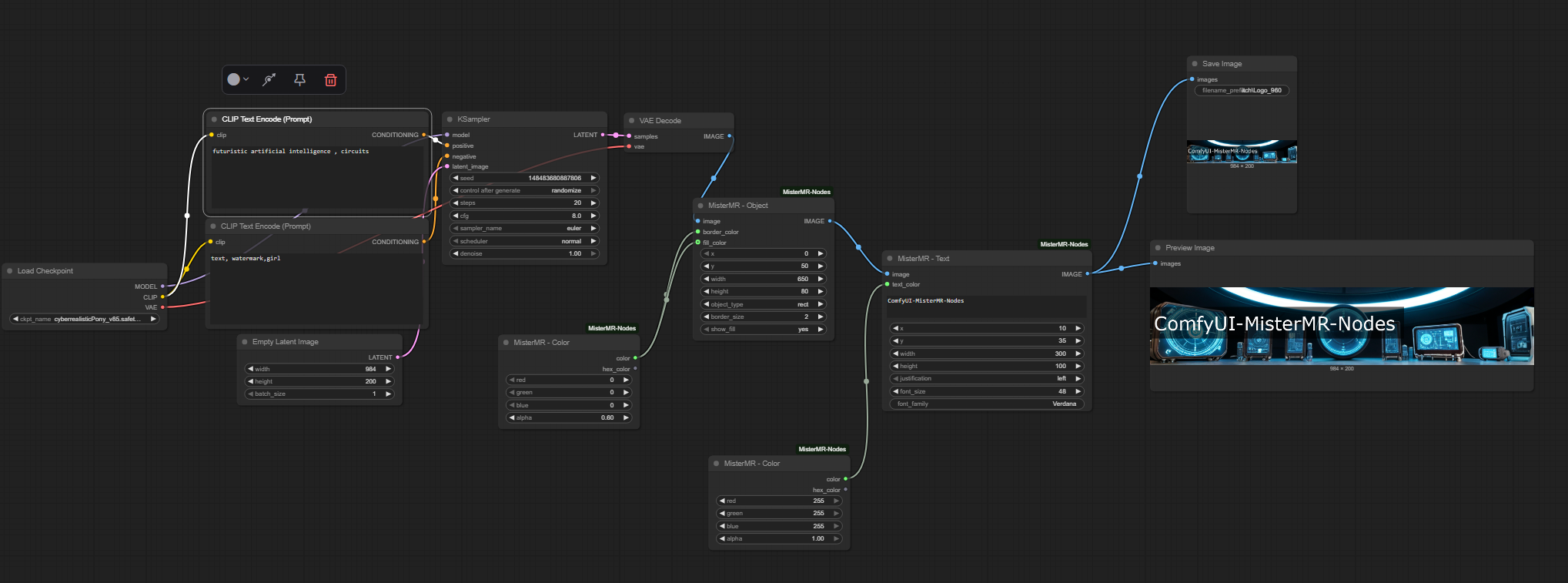

The logo on top is created by a worflow in ComfyUI with my component.
(The json on the article contains the workflow, import to comfyUI)

Features

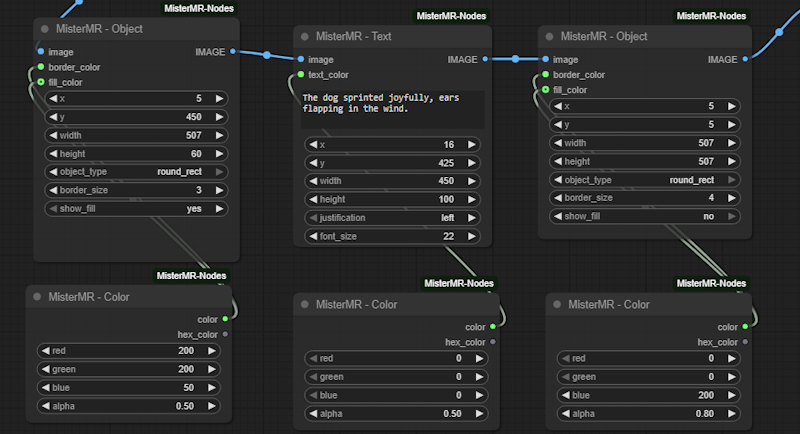

AddSingleObjectNode

Allows you to draw various shapes on your images:

• Circle
• Rectangle
• Rounded Rectangle

Parameters:

• image: Input image
• x, y: Position coordinates
• width, height: Shape dimensions
• object_type: Shape type (circle/rect/round_rect)
• border_size: Thickness of shape border (0-100)
• border_color: Color of the border (hex format)
• show_fill: Enable/disable shape filling
• fill_color: Fill color (hex format)

AddSingleTextNode

Adds text to your images with various customization options:

• Custom positioning
• Three justification options (left/center/right)
• Adjustable font size

Parameters:

• image: Input image
• text: Text to draw
• x, y: Text position
• width, height: Text box dimensions
• justification: Text alignment (left/center/right)
• font_size: Size of the font (8-256)
• font_family: Font to use (defaults to Arial with system fallbacks)
• text_color: Color of the text (hex format)

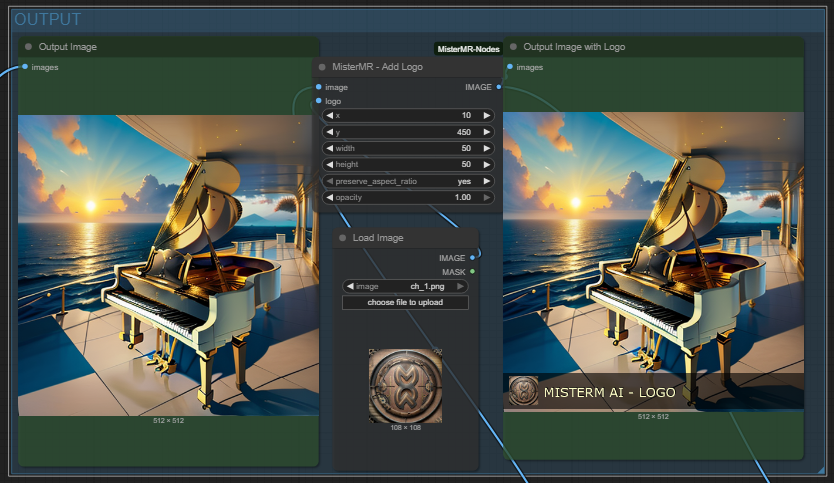

AddLogoNode

Overlays a logo or another image onto your base image:

• Custom positioning and sizing
• Option to preserve aspect ratio
• Adjustable opacity for transparent overlays

Parameters:

• image: Input base image
• logo: Logo image to overlay
• x, y: Logo position
• width, height: Logo dimensions
• preserve_aspect_ratio: Maintain original logo proportions (yes/no)
• opacity: Transparency of the logo (0.0-1.0)

ColorNode

Creates color values for use with other MisterMR nodes:

• Define colors with RGBA values
• Use with border_color, fill_color, and text_color parameters

Parameters:

• red: Red component (0-255)
• green: Green component (0-255)
• blue: Blue component (0-255)
• alpha: Transparency (0.0-1.0)

Returns:

• color: Color object for use with other nodes
• hex_color: Hex string representation of the color

Installation

1. Clone this repository into your ComfyUI custom_nodes folder:

cd ComfyUI/custom_nodes
git clone https://github.com/maurorilla/ComfyUI-MisterMR-Nodes

1. Restart ComfyUI

Requirements

• PIL (Pillow)
• numpy
• torch
• matplotlib

Usage

1. In ComfyUI, you'll find the nodes under the "MisterMR/Drawing" category
2. Connect an image input to either node
3. Configure the parameters as needed
4. The nodes will return the modified image that can be used in further processing

Notes

• Font loading defaults to system Arial font, falls back to default font if unavailable
• Colors can be specified in hex format (#RRGGBB) or using the ColorNode
• Advanced color features include alpha transparency support
• For logo overlays, transparency is preserved when using PNG images with alpha channels
